Blaze Audio PowerZone Connect 504

The Blaze Audio PowerZone Connect 504 is a robust 500 W Class-D amplifier that delivers exceptional power and flexibility in a small package. Designed for sophisticated commercial audio installations, this amp features a space-saving half-rack, 1U form factor without compromising on performance or control.

This 4-channel amplifier offers highly versatile hybrid power distribution, allowing you to drive conventional Lo-Z (4Ω to 16Ω) loudspeakers and Hi-Z (70V/100V) transformer-coupled systems. The Connect 504 provides impressive output options, including 4 x 125 W in Lo-Z mode or 2 x 250 W in Hi-Z mode. Its innovative automatic power sharing technology allows 250 W to be proportionately shared between each pair of Lo-Z outputs, maximizing efficiency. The unit is built with highly efficient Pascal UMAC™ Class-D technology and a UREC™ universal power supply with PFC, ensuring reliable global operation and adherence to Energy Star/ErP compliance.

System configuration is simple and powerful via the integrated PowerZone™ Control web app. Accessible through a wired or wireless network connection, this platform offers full-matrix DSP configuration, allowing you to manage inputs/outputs, control sound zones, import speaker pre-sets, and access professional tuning settings quickly—all from any standard browser, including your smartphone. Connectivity is comprehensive with four analog inputs, one stereo digital input, S/PDIF input/output, and configurable GPIO for seamless integration with external control systems. The Connect 504 is UL listed and secured by an industry-leading 5-year warranty.

Key Features

• High Power Density: Total 500 W output across 4 channels in a compact half-rack, 1U form factor.
• Flexible 4-Channel Output: Options include 4 x 125 W (Lo-Z) or 2 x 250 W (Hi-Z).
• Automatic Power Sharing: Efficiently shares 250 W across each pair of Lo-Z outputs.
• Networked DSP Control: Full-matrix configuration and management via the built-in PowerZone™ Control web app (wired or wireless).
• Hybrid Power Distribution: Supports both Lo-Z (4–16Ω) and Hi-Z (70V/100V) systems.

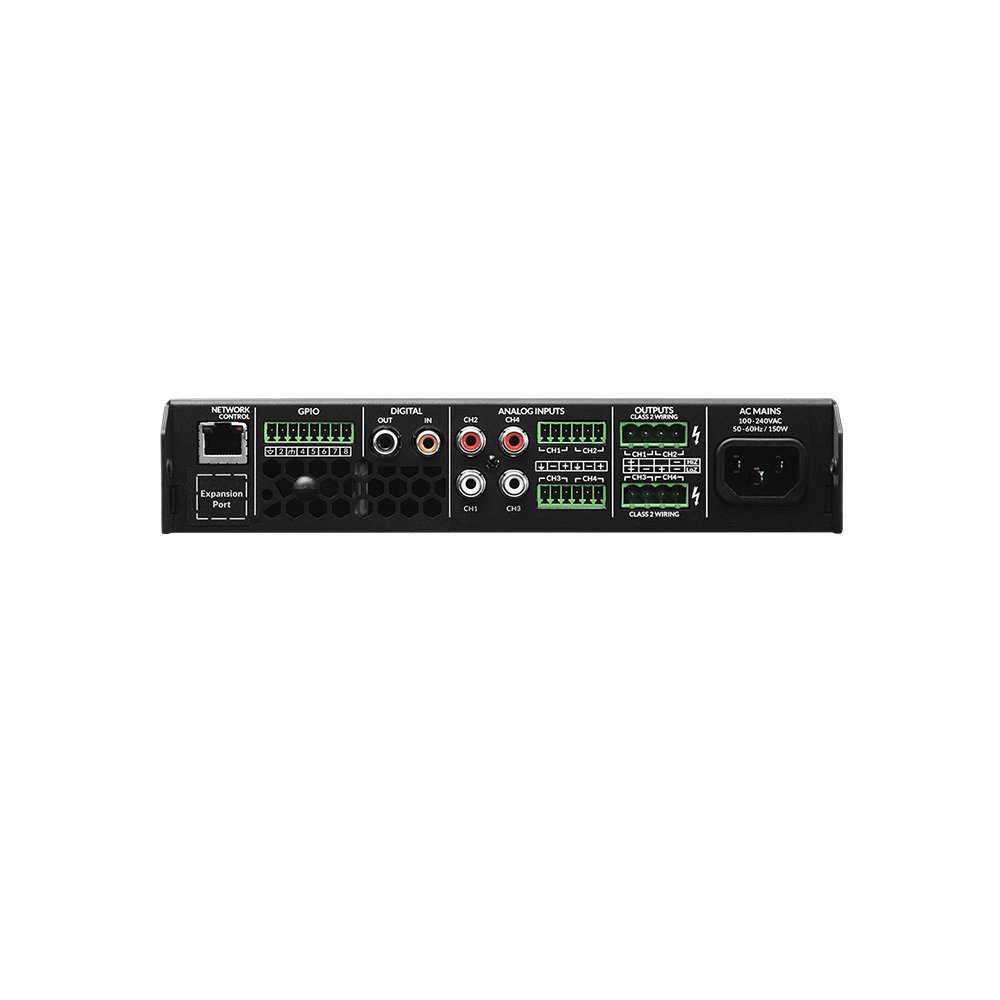

• Connectivity: Features four analog inputs, one stereo digital input, S/PDIF I/O, and configurable GPIO.
• Efficiency & Safety: Powered by Pascal UMAC™ Class-D technology; UL listed and Energy Star/ErP compliant.
• Warranty: Backed by an industry-leading 5-year warranty.
