Blustream - Dante Optical S/PDIF Encoder / Decoder

    Category

    Blustream - Dante Optical S/PDIF Encoder / DecoderBlustream - Dante Optical S/PDIF Encoder / DecoderBlustream - Dante Optical S/PDIF Encoder / DecoderBlustream - Dante Optical S/PDIF Encoder / Decoder
    Blustream - Dante Optical S/PDIF Encoder / Decoder
    Blustream - Dante Optical S/PDIF Encoder / Decoder
    Blustream - Dante Optical S/PDIF Encoder / Decoder
    Blustream - Dante Optical S/PDIF Encoder / Decoder
    Code: BLUDA22OPT

    Dante encoder/decoder, Blustream DA22OPT, converts optical S/PDIF to Dante and back. Features PoE, AES67, web-GUI, and high-resolution audio support.

    €287.00

    Available to Order


    QtyAdd to Cart

    Product Description
    Blustream - Dante Optical S/PDIF Encoder / Decoder

    The Blustream DA22OPT is a compact, powerful device that bridges the gap between traditional optical S/PDIF audio and Dante networked audio systems. Designed for flexibility, it functions as both an encoder and a decoder, allowing for seamless integration of digital audio sources into your Dante network.

    Key Features:
    • Bidirectional Conversion: Encode 2-channel optical S/PDIF audio to a Dante digital signal, or decode a Dante digital signal back to 2-channel optical S/PDIF.
    • Flexible Routing: Route optical S/PDIF signals from input to output by simply binding the connection in Dante Controller, offering exceptional flexibility in audio distribution.
    • High-Resolution Audio Support: Supports a wide range of sample rates (44.1, 48, 88.2, and 96 kHz) and bit depths (16, 24, and 32 bit) for pristine audio quality.
    • Adjustable Latency and Gain: Configurable Dante device latency (2-10ms) and adjustable input sensitivity/output gain (+6dB / -24dB) to fine-tune your audio setup.
    • AES67 Compatibility: Supports AES67 RTP audio transport, ensuring interoperability with a wide range of audio networking systems.
    • Power over Ethernet (PoE): Powered via Class 0 802.3af PoE, simplifying installation and reducing cable clutter.
    • Web-GUI Control: Built-in web-GUI for easy configuration and control, allowing for remote management of your audio network.
    • Optional 12V Power: Includes a local 12V power supply input for environments where PoE is unavailable.
    • Plug-and-Play Simplicity: Designed for quick and easy integration into existing Dante networks.
    The Blustream DA22OPT provides a reliable and efficient solution for integrating optical S/PDIF devices into Dante audio networks, making it ideal for professional audio installations where flexibility and high-quality audio are essential.
    Specification
    • Audio Input/Output Connectors:
    • 1 x RJ45, female (100 Mbps Dante network)

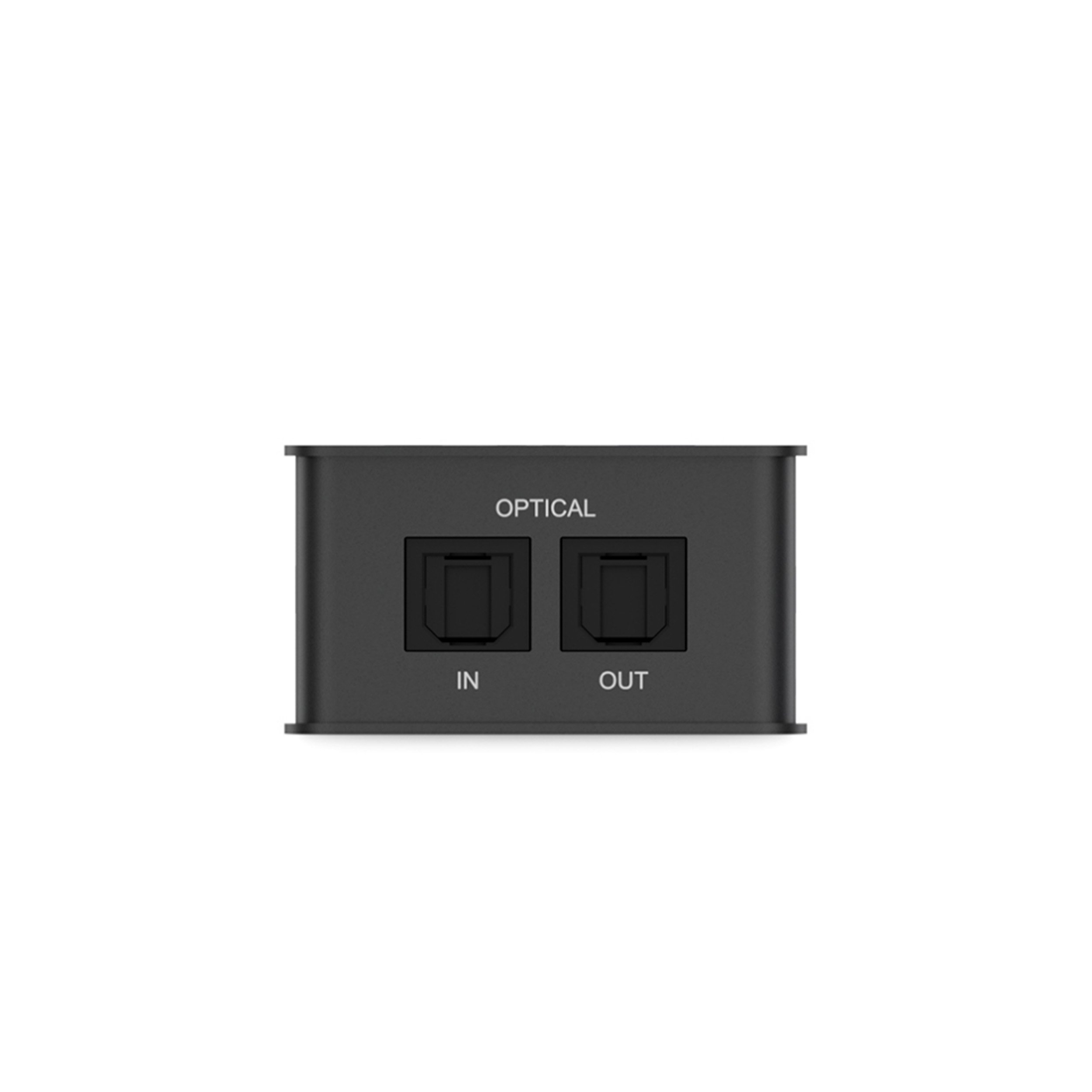

    • 2 x Optical Toslink (S/PDIF)
    • Casing Dimensions (L x W x H): 120mm x 47mm x 26mm
    • Shipping Weight: 0.3 Kg
    • Operating Temperature: 32°F to 104°F (0°C to 40°C)
    • Storage Temperature: - 4°F to 140°F (- 20°C to 60°C)
    • Power Supply: Class 0 IEEE 802.3af POE PD or 5V USB
