Blustream USB-C / USB 3.2 5Gbps HDBaseT Extender Set - 100m

Code: BLUUEX3C-KIT

Need to extend USB-C? The Blustream UEX3C-KIT extends 5Gbps USB 3.2 signals up to 100m over a single cable. Simple plug-and-play!

647.00

Low Stock


QtyAdd to Cart

Blustream USB-C / USB 3.2 5Gbps HDBaseT Extender Set - 100m, USB-C Host to USB-C Device, bi-directional PoC, PD Charging for Host

The Blustream UEX3C-KIT is a powerful solution for extending high-speed USB-C signals over long distances. Using reliable HDBaseT technology, this extender set transmits USB 3.2 Gen1 data up to 100m over a single CAT6A cable. It's the perfect way to connect and power devices like conferencing cameras, video capture units, KVMs, and more, all without the limitations of short USB cables.

The UEX3C-KIT is engineered for both performance and convenience. It supports a lightning-fast data transfer rate of up to 5Gbps and is fully backward compatible with older USB 2.0 and 1.1 devices. The system provides bi-directional Power over Cable (PoC), giving you the flexibility to power the entire extender from either the host or the device unit. The receiver unit even offers a dedicated port to supply Power Delivery (PD) charging to your host device.

With simple plug-and-play functionality, no drivers or setup are required. The transmitter unit provides both a USB-A and a USB-C port, delivering a combined power output of up to 2.5A to connected devices. Whether you’re working on a complex conference room setup or a simple remote workstation, the UEX3C-KIT makes long-distance USB extension effortless and reliable.

Key Features
  • USB 3.2 Gen1 signal extension up to 100m over a single CAT6A cable.
  • Supports data transfer speeds up to 5Gbps.
  • Bi-directional PoC powers the extender from either end.
  • Provides host charging with a dedicated USB-C Power Delivery port.
  • Connects up to two USB devices (1x USB-A, 1x USB-C).
  • Plug-and-play operation with no drivers required.
  • Backward compatible with USB 2.0 and USB 1.1 devices.

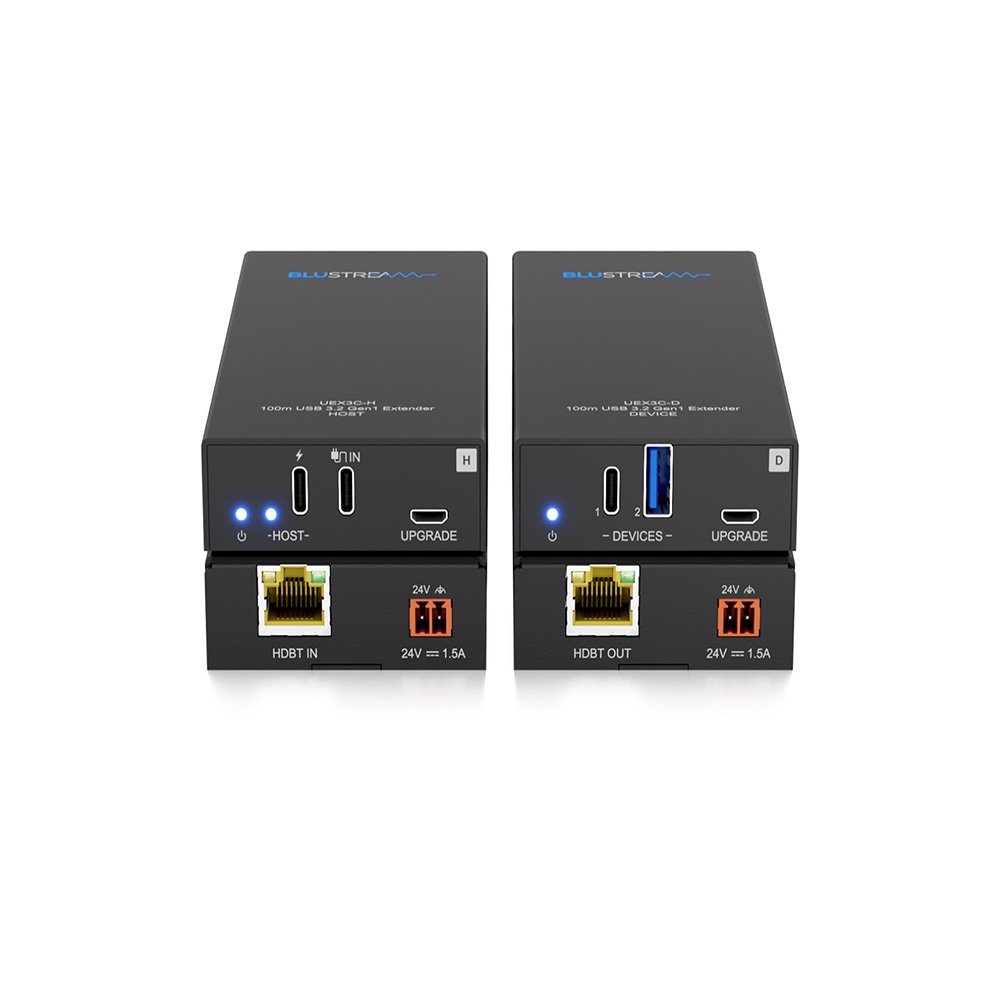

UEX3C-H
• USB Host Connectors: 1x USB-C, female
• USB Charge Connectors: 1x USB-C, female
• CAT Connectors: 1x HDBaseT™ RJ45 connector
• Upgrade Port: 1x Micro USB connector
• Casing Dimensions (W x D x H): 130mm x 61mm x 22mm
• Power Supply: 24V/1.25A DC, 2-pin Phoenix connector

UEX3C-D
• USB Host Connectors: 1x USB-C, female, 1x USB-A, female
• USB Charge Connectors: 1x USB-C, female
• CAT Connectors: 1x HDBaseT™ RJ45 connector
• Upgrade Port: 1x Micro USB connector
• Casing Dimensions (W x D x H): 130mm x 61mm x 22mm
• Power Supply: 24V/1.25A DC, 2-pin Phoenix connector

UEX3C-KIT
• USB Hops: 2 x USB hops / tiers for this extender kit
• Box Dimensions (W x D x H): 215mm x 150mm x 63mm
• Shipping Weight: 1.0kg
• Operating Temperature: 32°F to 104°F (-5°C to +55°C)
• Storage Temperature: -4°F to 140°F (-25°C to +70°C)
1 x UEX3C-H
1 x UEX3C-D
2 x Mounting kits
1 x 24V/1.5A power supply
1 x Quick Reference Guide
