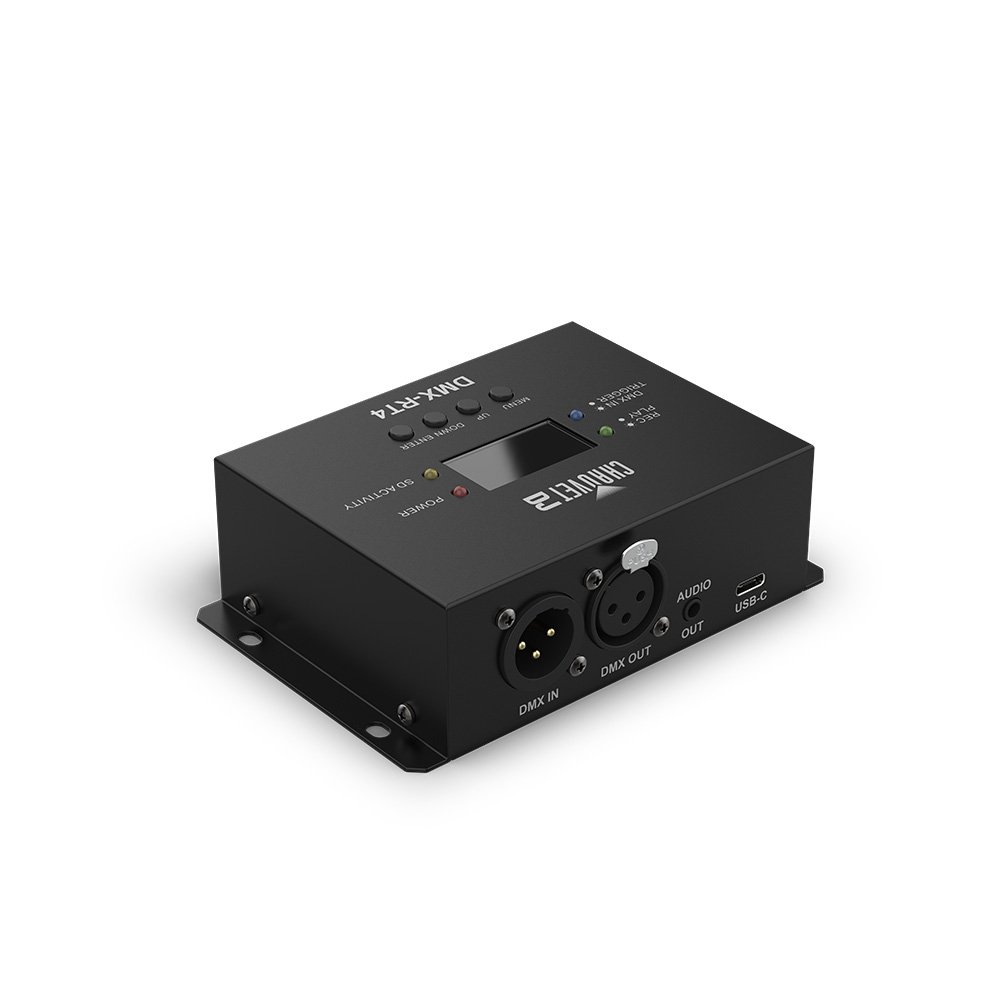

Chauvet DJ DMX-RT4: 4 independent DMX triggers for playback. USB-C, audio sync, password protect, N/O/C sensor support. Ideal for Irish DJs & lighting pros.
The DMX-RT4's flexible trigger inputs support both Normally Open (N/O) and Normally Closed (N/C) configurations, making it compatible with a wide array of commonly used sensors. A modern USB-C connector allows for seamless copying, backing up, and transferring of your valuable show files. For synchronized audio playback, a standard 3.5mm headphone jack enables easy connection to external sound systems for amplified output. Security is paramount, and the DMX-RT4 offers password protection to safeguard your creative work from unauthorized modifications. Furthermore, the device can supply DC voltage through a convenient terminal block, providing power for specific external triggers.
Key Features:
- 4 Independent DMX Triggers: Control up to four separate DMX sequences.
- Individual Trigger Programming: Each trigger can be programmed and activated independently.
- USB-C Connectivity: Easily copy, backup, and transfer show files.
- 3.5mm Audio Output: Connect to external audio systems for synchronized playback.
- Password Protection: Secure your programmed shows from alteration.
- N/O & N/C Trigger Support: Compatible with a wide range of sensors.
- DC Voltage Output: Provides power for external triggers via terminal block.
- Robust and Reliable: Built for the demands of DJ and lighting professionals.
- Intuitive Operation: Simplifies DMX show control.
- DMX Channels: 3-pin XLR
- Input Voltage: 12 VDC, 1 A (external power supply: 100 to 240 VAC, 50/60 Hz)
- Power and Current: 1 W, 0.03 A @ 120 V, 60 Hz, 1 W, 0.03 A @ 230 V, 50 Hz
- Weight: 0.4 lb (0.2 kg)
- Size: 4.8 x 3.2 x 1.5 in (122 x 81 x 38 mm)
- Approvals: CE, UKCA, RoHS
- Compatible audio formats: MP3 (32-320kbps), WAV (8 or 16bit only)
- Onboard memory: 32 GB
- Filename max length (MP3/WAV): 12 characters
- Filename max length (show file): 11 characters
- Trigger Type: auto, toggle, N/O or N/C
- Terminal Block output: 12 VDC, 100 mA
