Code: CHAPROCOLORDASHBATTENH12XIP
Chauvet COLORdash H12X IP: Powerful IP65 linear wash with 12 hex-color LEDs. Smooth 16-bit fades & flicker-free for any environment.
Please call us on +353 (0)74 91 45179 for a price.
Or Email info@ror.ie for more information.

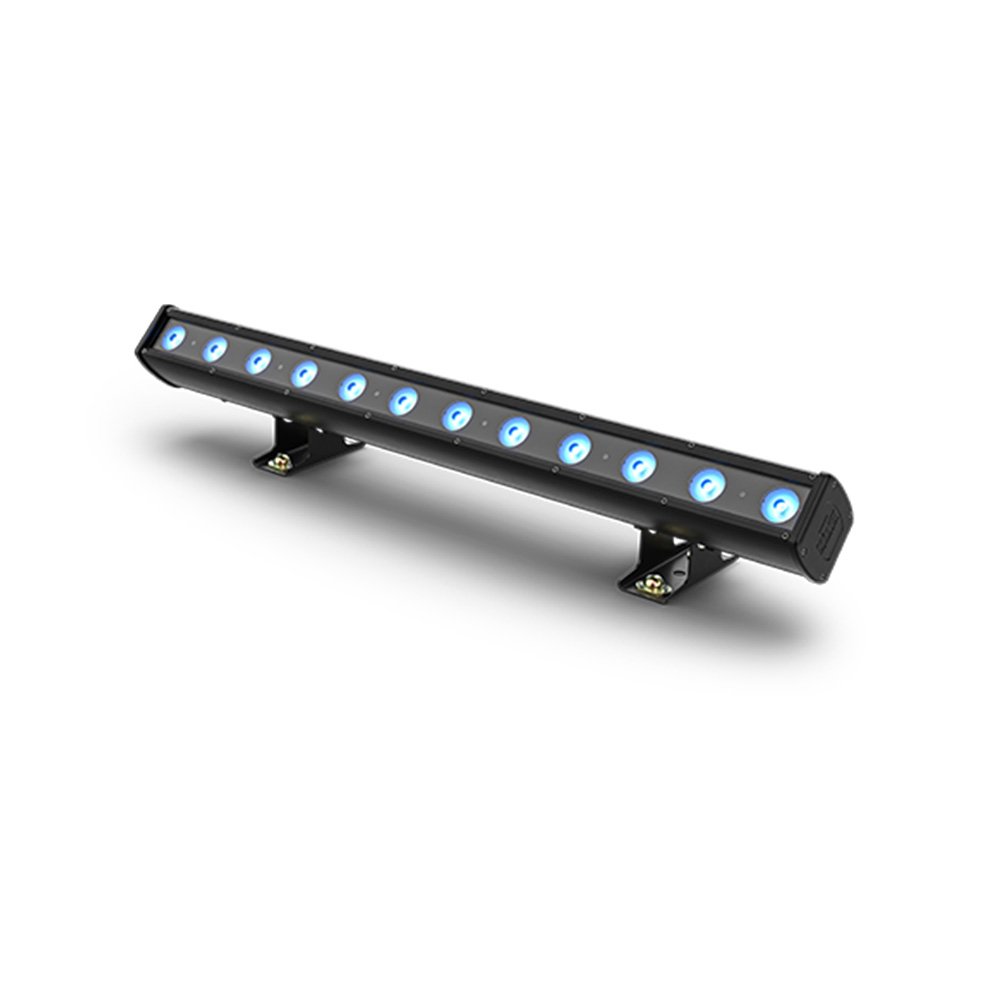

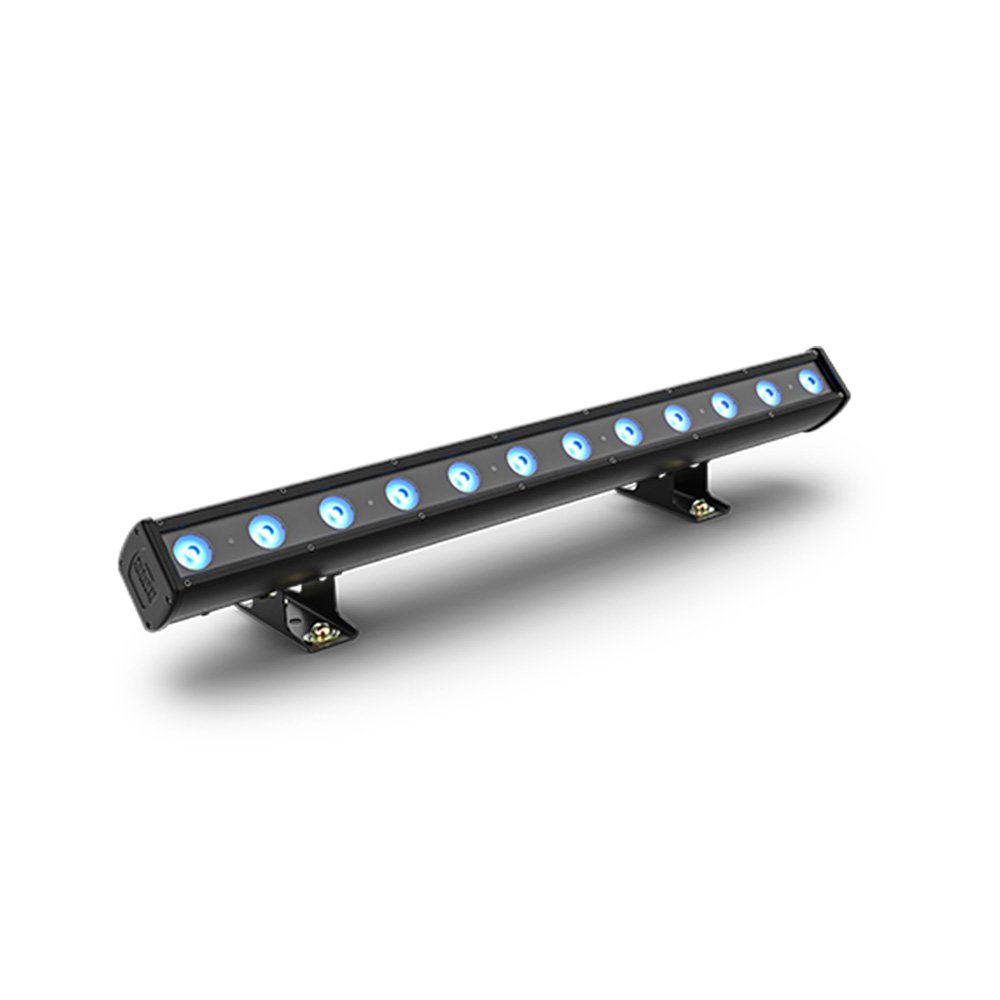

Chauvet Pro COLORdash Batten Hex 12XIP - IP Rated 12x10w RGBWA-UV LED Batten
Unleash a spectrum of stunning, precisely mixed colours with the Chauvet Professional COLORdash Batten H12X IP. This rugged, IP65-rated linear wash light, featuring 12 individually-controllable RGBWA-UV LEDs, is engineered to perform flawlessly in any environment, indoors or out.
Weighing less than 18 lbs yet delivering over 4,700 lumens of output, the H12X IP provides a broad palette from subtle pastels to rich, saturated hues. Achieve incredibly smooth transitions with 16-bit fades and four selectable dimming curves. For on-camera applications, multiple PWM frequencies ensure flicker-free output, making it perfect for live broadcasts and film.
Designed for effortless integration, this batten maintains an even pixel pitch when used in multiples, allowing for seamless pixel-mapped looks. Setup is a breeze with hanging brackets that double as floor stands. Take control remotely with RDM for DMX personality selection, or navigate its onboard menu with ease via the OLED display.
The COLORdash Batten H12X IP is a true die-cast workhorse, offering convenient operation and exceptional performance whether it's in the rig or on the floor, live or on camera.
Key Features:
Weighing less than 18 lbs yet delivering over 4,700 lumens of output, the H12X IP provides a broad palette from subtle pastels to rich, saturated hues. Achieve incredibly smooth transitions with 16-bit fades and four selectable dimming curves. For on-camera applications, multiple PWM frequencies ensure flicker-free output, making it perfect for live broadcasts and film.
Designed for effortless integration, this batten maintains an even pixel pitch when used in multiples, allowing for seamless pixel-mapped looks. Setup is a breeze with hanging brackets that double as floor stands. Take control remotely with RDM for DMX personality selection, or navigate its onboard menu with ease via the OLED display.
The COLORdash Batten H12X IP is a true die-cast workhorse, offering convenient operation and exceptional performance whether it's in the rig or on the floor, live or on camera.
Key Features:
- Rugged RGBWA-UV LED batten: Perfect for events demanding indoor/outdoor flexibility.
- IP-rated power and DMX connections: Performs flawlessly in any weather.
- Adjustable PWM: Eliminates on-camera flicker.
- RDM (Remote Device Management): For enhanced programming versatility.
- Selectable, smooth dimming curves: Ensures fluid, flicker-free fades.
- Easy-to-read OLED display: Intuitive control with password protection and a touchscreen interface.
- Advanced optics: Delivers exceptional color mixing and high efficiency.
- Floor trunions with omega bracket: For easy hanging or floor placement.
Optical
Dynamic Effects
Construction / Physical
Connections
Control
Electrical
Certifications / Qualifications
What's Included
Optional Accessories
- Light Source: 12 LEDs (RGBAW+UV) 10 W, (532 mA), 50,000 hours life expectancy
- Color Temperature (at full): 11567 K
- Beam Angle: 24.9°
- Field Angle: 40.7°
- Lumens: 4,796 lm
- Illuminance (total): 881 lux @ 5 m
- Selectable PWM: 600 Hz, 1200 Hz, 2000 Hz, 4000 Hz, 6000 Hz, 25,000 Hz
Dynamic Effects
- Dimmer: Electronic
- Shutter/Strobe: Electronic
- Strobe Rate: 0 to 23 Hz
- Standalone Color Mixing: Yes
- Color Temperature Presets: Yes/No
- Dim Modes: 4
- Built-in Automated Programs: Yes
Construction / Physical
- Dimensions: 39.4 x 8.129 x 3.78 in (1000 x 208 x 96 mm)
- Weight:17.4 lb (8 kg)
- Exterior Color: Black
- Housing Material: Aluminum diecast
Connections
- Power Connection: Edison (local) plug to Seetronic Powerkon IP65
- Power Input: Seetronic Powerkon IP65
- Power Output: Seetronic Powerkon IP65
- Data Connectors: 3- and 5-pin XLR
- Cable Length (power): 5 ft (1.5 m)
Control
- Control Protocol: DMX, RDM
- DMX Channels: 6, 8, 9, 13, 14, 42, 47 or 59
- Modes/Personalities: 8 personalities (6, 8, 9, 13, 14, 42, 47, 59)
Electrical
- Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
- Power Linking: 9 units @ 120 V; 16 units @ 208 V; 17 units @ 230 V
- Power and Current: 154 W, 1.284 A @ 120 V, 60 Hz
- Power and Current: 151 W, 0.741 A @ 208 V, 60 Hz
- Power and Current: 151 W, 0.667 A @ 230 V, 50 Hz
Certifications / Qualifications
- CE, MET, UKCA, FCC
- IP Rating : IP65, temporary outdoor/wet use, with pressure equalizing M12 GORE valve
- IP Rating: IP66, outdoor/wet, with pressure equalizing M12 GORE valve
- Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)
What's Included
- Colordash Batten H12X IP
- Neutrik powerCON TRUE1 power cord
- Omega Bracket (2pc)
Optional Accessories
- Professional Clamps: CTC-50HC, CTC-50HCN
- Seetronic Powercon power linking cables
- 5-pin IP DMX Cables
