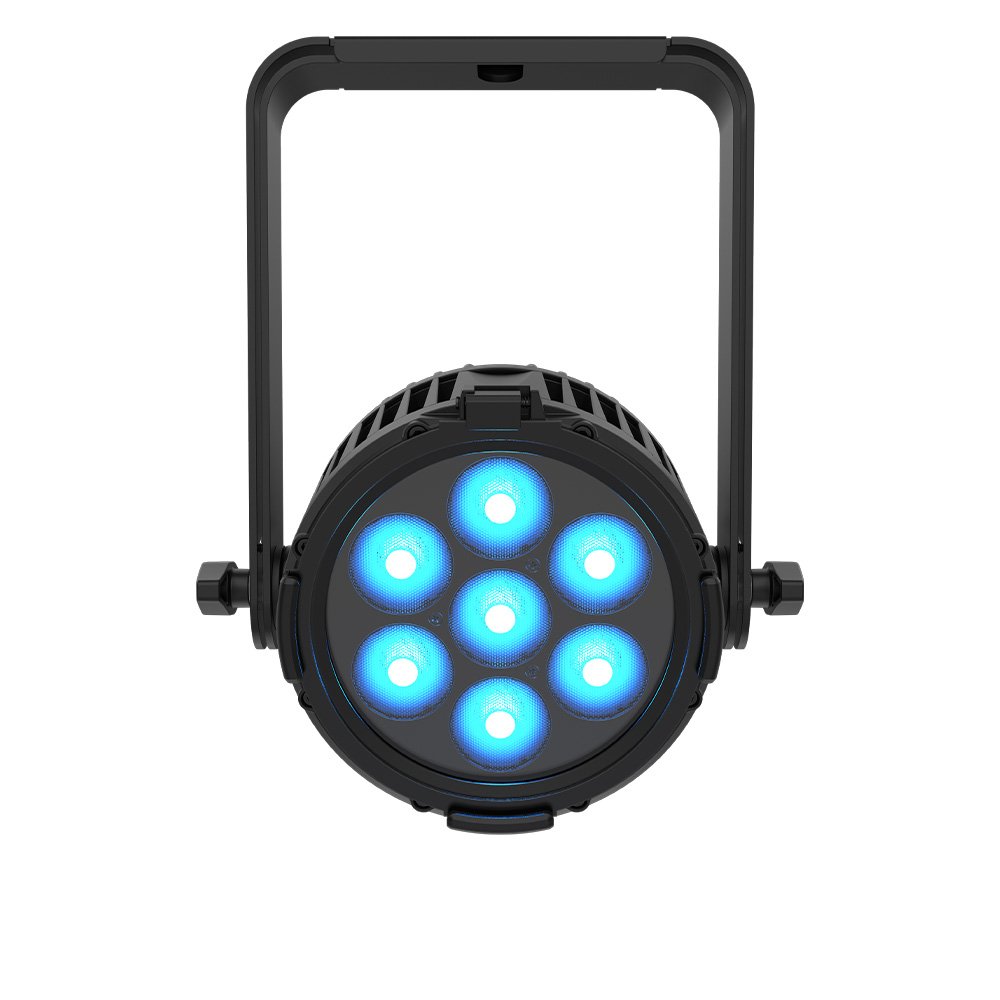

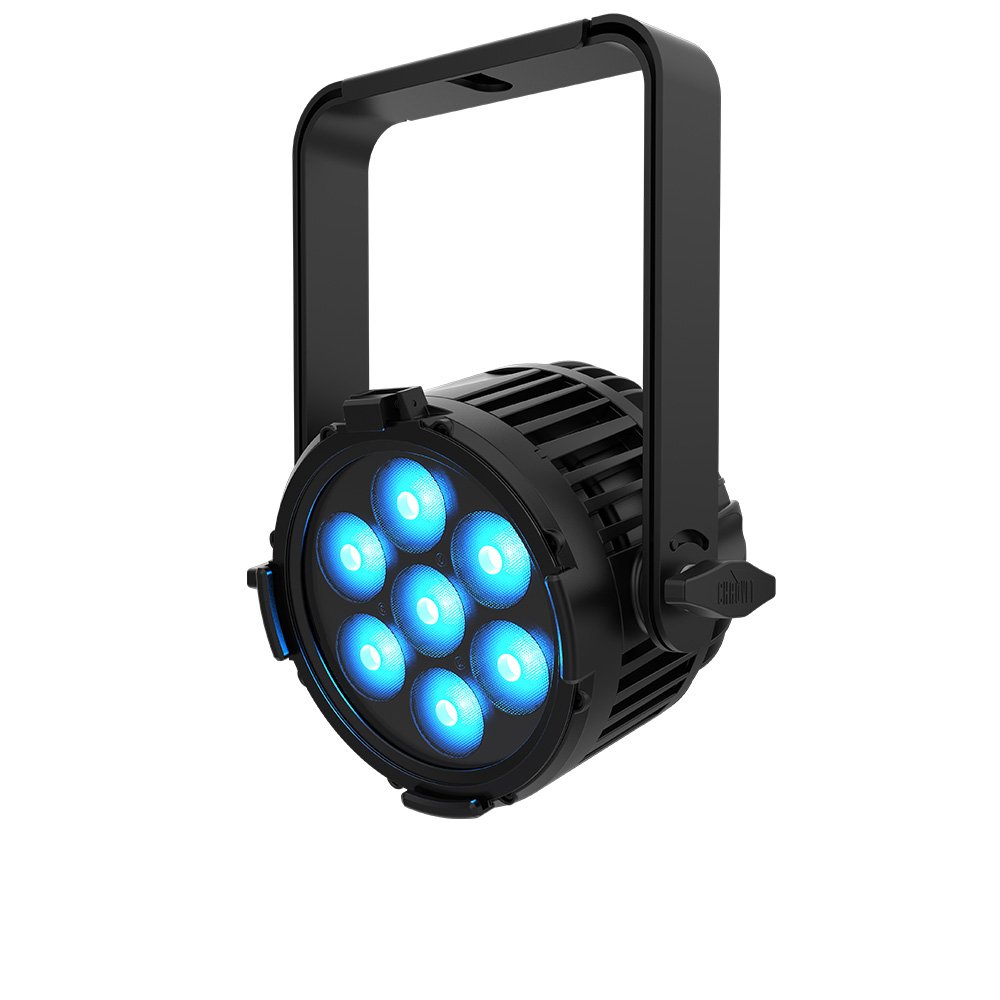

Chauvet Pro COLORdash Par-Hex 7XIP - IP Rated RGBWA-UV LED Wash Light

Code: CHAPROCOLORDASHPARH7XIP

Chauvet COLORdash Par-Hex 7XIP: IP65, all-weather LED wash with RGBWA-UV colour mixing, smooth fades, and flicker-free output.






Please call us on +353 (0)74 91 45179 for a price.
Or Email info@ror.ie for more information.
Chauvet Pro COLORdash Par-Hex 7XIP - IP Rated RGBWA-UV LED Wash Light

The Chauvet Professional COLORdash Par-Hex 7XIP is a compact, robust, and versatile LED wash light engineered for any environment. Whether you're on a live stage or a film set, indoors or out, this fixture delivers a stunning palette of vibrant, saturated colours and subtle pastels with exceptional precision. Weighing less than 8 lbs while providing over 2,600 lumens of output, it’s a lightweight powerhouse designed for professional use.

This fixture is a true workhorse, featuring a rugged IP65-rated die-cast housing with IP-rated power and DMX connections. This makes it perfect for events where you need the flexibility to move from an indoor rig to an outdoor stage without changing fixtures.

Control is flawless and intuitive. The COLORdash Par-Hex 7XIP offers a beautiful, flicker-free output with multiple PWM frequencies and 16-bit fades with four selectable dimming curves, eliminating choppiness and ensuring smooth transitions for live and camera applications. It also features RDM (Remote Device Management) for remote configuration and a clear OLED display with a user-friendly touchscreen interface and password protection.

The advanced optics provide superb colour mixing with its RGBWA-UV LEDs, allowing you to punch up a hot pink, mix a delicate pastel, or perfectly calibrate a Kelvin colour temperature. The double-bracketed yoke even doubles as a floor stand, making it a versatile and indispensable tool for lighting designers.

Key Features:
  • IP65-Rated: All-weather die-cast housing for indoor/outdoor use.
  • RGBWA-UV LEDs: Delivers a broad, precise colour palette.
  • Flicker-Free Output: Adjustable PWM for on-camera and video work.
  • 16-bit Fades: Ensures smooth, professional dimming curves.
  • RDM & OLED Display: Convenient remote and onboard control.
  • High Output: Over 2,600 lumens from a compact, sub-8 lb fixture.
  • Versatile Bracket: Doubles as a floor stand for flexible positioning.
Optical
  • Light Source: 7 LEDs (hex-color RGBAW+UV) 84 W, (513 mA), 50,000 hours life expectancy
  • Color Temperature (range): 2800 to 10,000 K
  • Color Temperature (at full): 11,477 K
  • Beam Angle: 23°
  • Field Angle: 37.9°
  • Lumens: 2664
  • Illuminance (total): 583 lux @ 5 m
  • Selectable PWM: 600, 1.2k, 2k, 4k, 6k, 25k Hz

Dynamic Effects
  • Dimmer: Electronic
  • Shutter/Strobe: Electronic
  • Strobe Rate: 0 to 20 Hz
  • Standalone Color Mixing: Yes
  • Color Temperature Presets: Yes
  • Dim Modes: 4
  • Built-in Automated Programs: Yes
  • Customizable Programs: No

Construction / Physical
  • Dimensions: 6.7 x 9.6 x 9.8 in (170 x 243.4 x 248.1 mm)
  • Weight: 7.4 lbs (3.4 kg)
  • Exterior Color: Black
  • Housing Material: Aluminum alloy, Aluminum die-cast

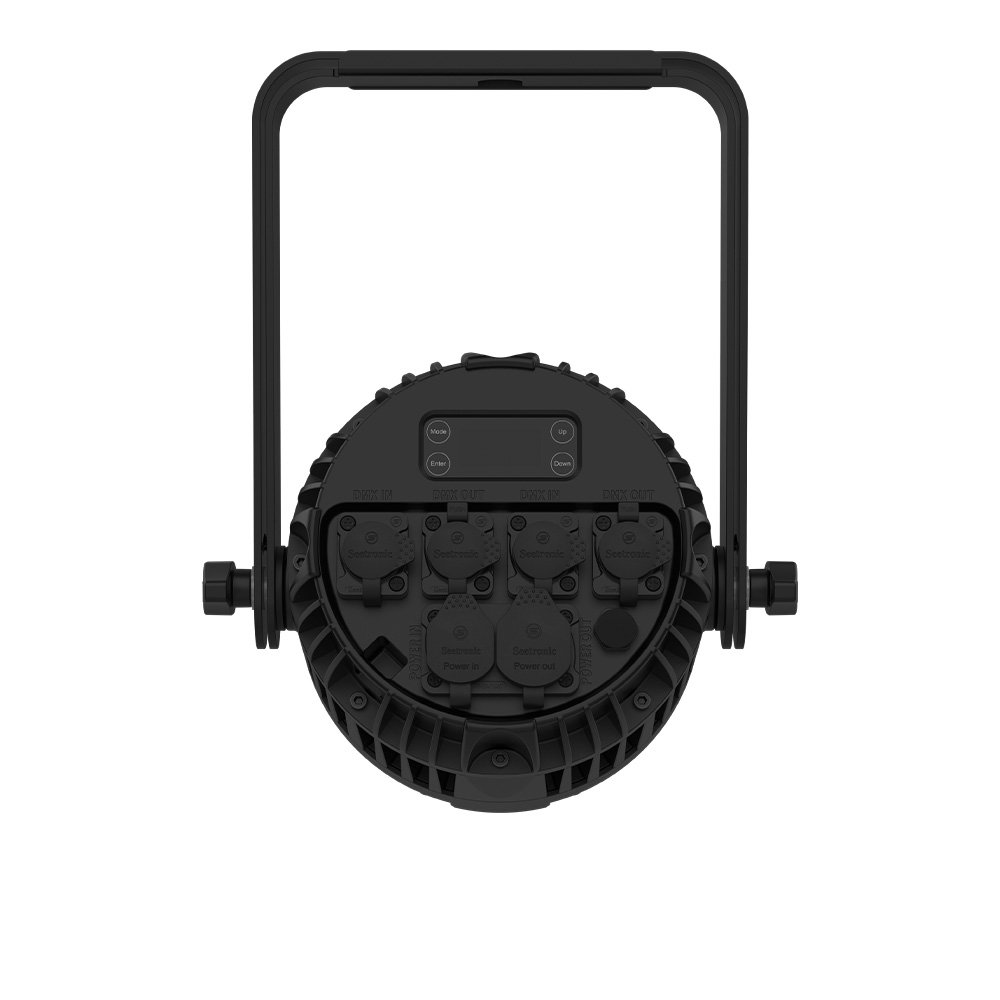

Connections
  • Power Connection: Edison (Local) plug to Seetronic Powercon IP65
  • Power Output: Seetronic Powercon IP65
  • Data Connectors: 3- and 5-pin XLR, 3- and 5-pin IP65 XLR
  • Cable Length (power): 5 ft (1.5 m)
Control
  • Control Protocol: DMX, RDM
  • DMX Channels: 6ch ,8ch ,9ch ,13ch, or 14ch
  • Modes/Personalities: 5 personalities (6ch ,8ch ,9ch ,13ch, or 14ch)
Electrical
  • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power Linking: 19 units @ 120 V; 34 units @ 208 V; 37 units @ 230 V
  • Power and Current: 71 W, .604 A @ 120 V, 60 Hz
  • Power and Current: 69 W, .352 A @ 208 V, 60 Hz
  • Power and Current: 68 W, .318 A @ 230 V, 50 Hz
Certifications / Qualifications
  • CE, MET, FCC, UKCA
  • IP Rating: IP65, temporary outdoor/wet use
  • Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)
What's Included
  • Colordash Par H7XIP
  • Seetronic powercon IP65 power cord
  • Gel frame holder (6.5 in /165 mm)
  • Gel frame
Optional Accessories
  • Professional Clamps: CTC-50HC, CTC-50HCN
  • Seetronic Powercon power linking cables
  • 5-pin IP or Non-IP DMX Cables
  • COLORdash Par H7X Barndoor
