Code: CHAPROOVATIONF415FC-2
High-output Chauvet Ovation F-415FC-2 RGBAL Fresnel with motorized 14-68° zoom & TRUE1. Soft, even light, virtual color wheel, silent operation.
Please call us on +353 (0)74 91 45179 for a price.
Or Email info@ror.ie for more information.
Chauvet Pro Ovation F-415FC-2 RGBAL Fresnel with 14-68 Degree Motorised Zoom (Now fitted with TrueCon Connectors)

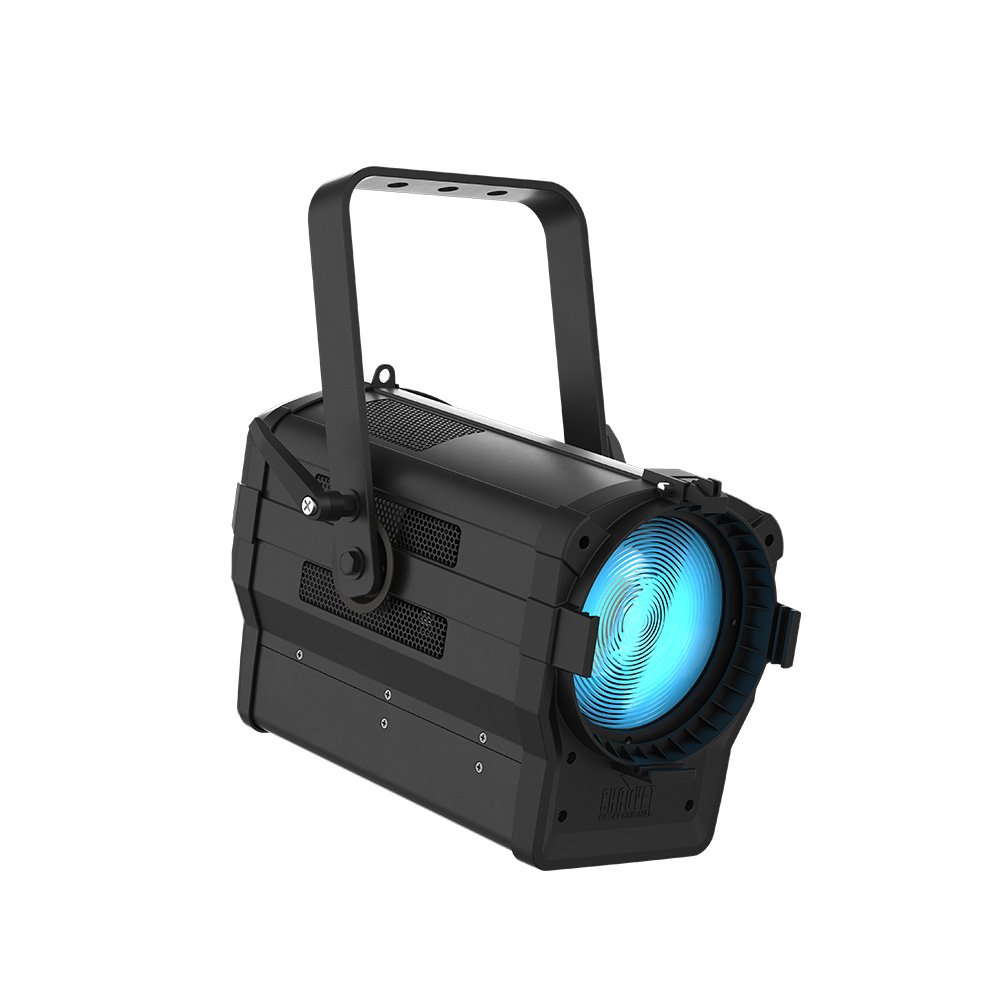

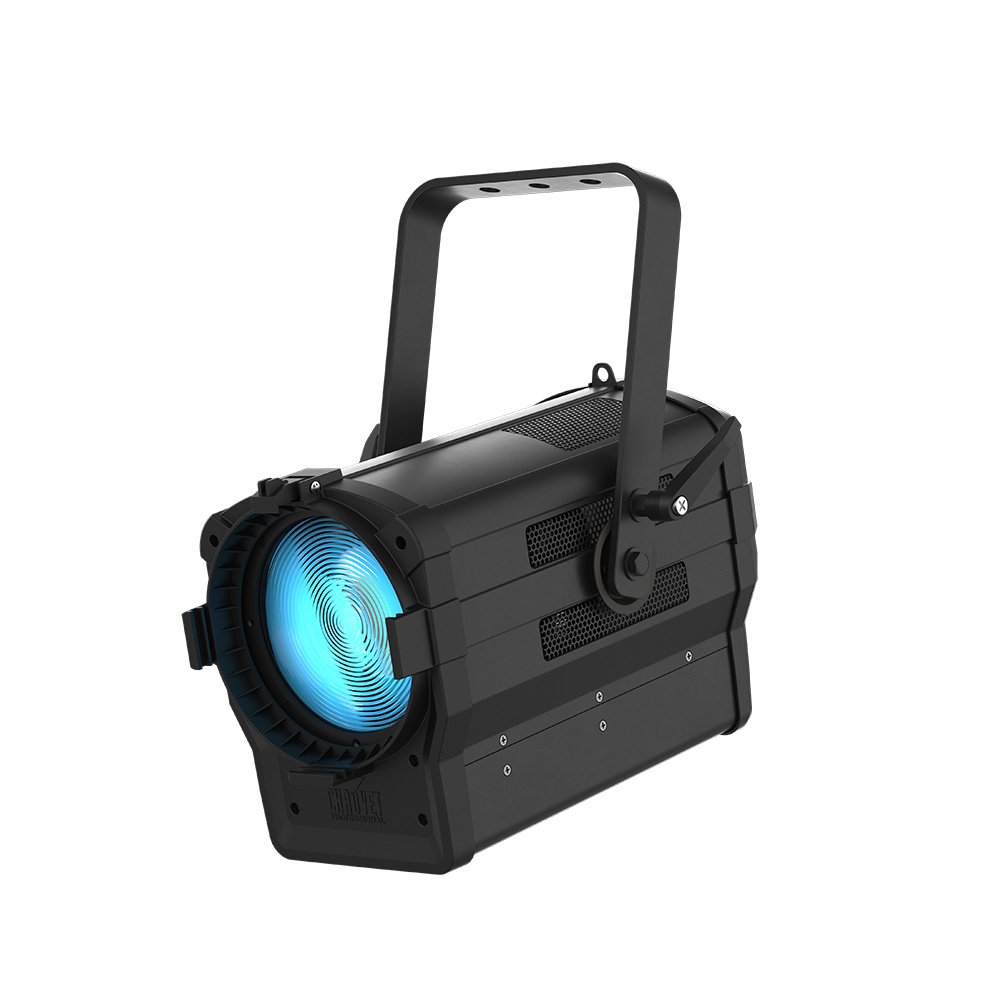

The Chauvet Professional Ovation F-415FC-2 is a 6" RGBAL LED Fresnel fixture, now equipped with secure TRUE1 connectors, designed for theatre, film, and production applications demanding a soft, even field of full-spectrum color.
This advanced fixture utilizes our innovative RGBAL (Red, Green, Blue, Amber, Lime) LED system to project a wide range of colors, from delicate pastels to rich saturates, and virtually any shade of white. The inclusion of Lime significantly enhances color rendering and allows for a broader, more natural white light spectrum. A smooth, motorized zoom with a 14° to 68° beam angle provides precise control over your light output, allowing you to focus exactly where needed. Control color mixing via the virtual color wheel (with popular gel matches), adjust zoom, and manage intensity through DMX or intuitive on-board dials. RDM (Remote Device Management) simplifies setup, while adjustable PWM ensures flicker-free operation for on-camera use. The fixture's virtually silent operation makes it ideal for noise-sensitive environments like studios and theatres.
Key Features:
This advanced fixture utilizes our innovative RGBAL (Red, Green, Blue, Amber, Lime) LED system to project a wide range of colors, from delicate pastels to rich saturates, and virtually any shade of white. The inclusion of Lime significantly enhances color rendering and allows for a broader, more natural white light spectrum. A smooth, motorized zoom with a 14° to 68° beam angle provides precise control over your light output, allowing you to focus exactly where needed. Control color mixing via the virtual color wheel (with popular gel matches), adjust zoom, and manage intensity through DMX or intuitive on-board dials. RDM (Remote Device Management) simplifies setup, while adjustable PWM ensures flicker-free operation for on-camera use. The fixture's virtually silent operation makes it ideal for noise-sensitive environments like studios and theatres.
Key Features:
- Full Color RGBAL LED Fresnel: Delivers a soft, even field of light with a wide color gamut.
- TRUE1 Connectors: Ensures robust and secure power connections.
- Smooth Motorized Zoom: Adjustable beam angle from 14° to 68°.
- Precise 16-bit Dimming: Smooth fades for master dimmer and individual colors.
- Intuitive On-Board Control: Easy adjustment of color, zoom, and dimming.
- Virtual Color Wheel: Offers color matches to popular gel selections.
- Color Temperature Presets: Ranging from 2800 K to 6500 K for versatile white light.
- RDM (Remote Device Management): Provides added flexibility for installation and control.
- Adjustable PWM (Pulse Width Modulation): Eliminates flicker for on-camera use.
- Virtually Silent Operation: Ideal for studio and theatre environments.
Optical
- Light Source: 46 LEDs (10 red, 10 green, 6 blue, 8 amber, 12 lime) 3 to 5 W, (1 A), 50,000 hours life expectancy.
- Color Temperature (range): 2800 to 6500 K
- CRI (3200 K): 91
- Beam Angle: 14° to 43°
- Field Angle: 27° to 68°
- Zoom Range: 14° to 68°
- Lumens (27°): 1,877
- (68°): 2,815
- Illuminance (27°): 915 lux @ 5 m
- (68°): 190 lux @ 5 m
- Selectable PWM: 600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 25,000 Hz
Dynamic Effects
- Dimmer: Electronic
- Shutter/Strobe: Electronic
- Zoom: Motorized
- Strobe Rate: 0 to 27 Hz
- Standalone Color Mixing: Yes
- Color Temperature Presets: Yes
- Dim Modes: 4
- Built-in Automated Programs: Yes
Construction / Physical
- Dimensions: 15.80 x 11.22 x 9.51 in (401.46 x 285 x 241.65 mm)
- Weight: 12 lb (5.6 kg)
- Exterior Color: Black
- Housing Material: Aluminum alloy, Aluminum die-cast
- Accessory Holder/Gel Frame Size: 6.25 in (158.75 mm)

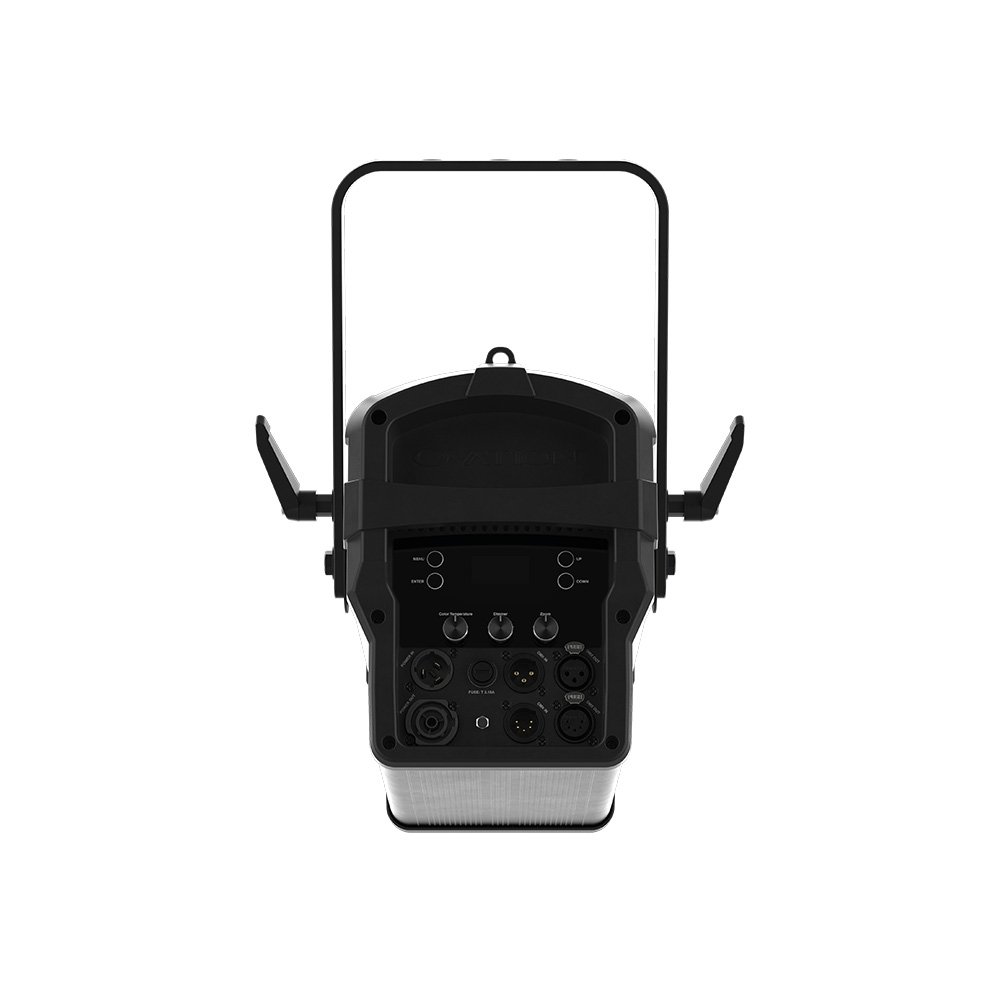

Connections
- Power Connection: Edison (local) plug to TrueCon
- Power Input: TrueCon
- Power Output: TrueCon
- Data Connectors: 3- and 5-pin XLR
- Cable Length (power): 5 ft (1.5 m)
Control
- Control Protocol: DMX, RDM
- DMX Channels: 1, 3, 5, 7, 10, 12, 13 or 15
- Modes/Personalities: 9 personalities (HSV, 1CH, 3CH, 5CH, 7CH, 10CH, 12CH, 13CH, 15CH)
Electrical
- Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
- Power Linking: 10 units @ 120 V; 18 units @ 208 V; 20 units @ 230 V
- Power and Current: 130 W, 1.101 A @ 120 V, 60 Hz
- Power and Current: 127 W, 0.638 A @ 208 V, 60 Hz
- Power and Current: 127 W, 0.585 A @ 230 V, 50 Hz
Certifications / Qualifications
- CE, MET, FCC, UKCA
- IP Rating: IP20, dry location
- Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)
What's Included
- Ovation F-415FC
- TrueCon power cord
- Gel frame (6.25 in / 158.75 mm accessories)
Optional Accessories
- Professional Clamps: CTC-50HC, CTC-50HCN
- TRUE1 Style Power Extension cables
- 3-pin or 5-pin DMX Cables
- Color Blending Filters: DF60X1D, DF20D
- Ovation F6.25” Barndoor
