Enhance your lighting setup with the Chauvet Pro Ovation F-915FC-2 RGBAL Fresnel. Motorized zoom and TrueCon connectors for top performance.
Please call us on +353 (0)74 91 45179 for a price.
Or Email info@ror.ie for more information.

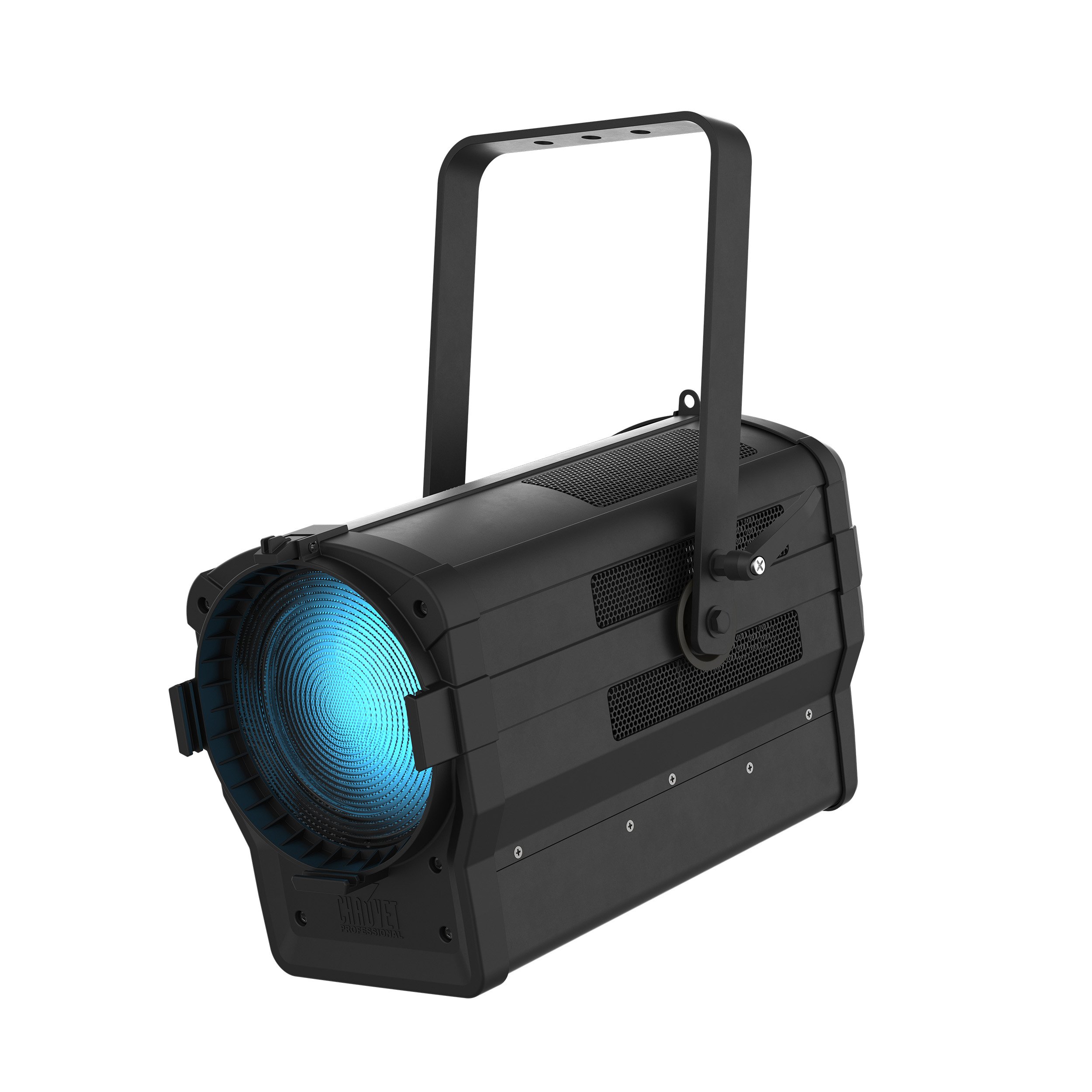

Chauvet Pro Ovation F-915FC-2 RGBAL Fresnel with 17-85 Degree Motorised Zoom (Now fitted with TrueCon Connectors)
The Ovation F-915FC-2 is a high-output RGBAL Fresnel fixture designed for theater, film, and production applications. Delivering a bright, soft, and even field of light, it provides a full spectrum of colors, from delicate pastels to deep saturates, along with precise color temperature presets from 2800K to 6500K. The motorized 17°–85° zoom allows for flexible beam shaping, ensuring optimal light placement in any setting. Now fitted with TrueCon connectors, this fixture guarantees reliable power connections for professional use.
Key Features:
Key Features:
- Full-Color RGBAL Output: Seamless color mixing with rich tones and natural whites.
- Motorized Zoom (17°–85°): Easily adjust the beam spread to match your lighting needs.
- Soft, Even Light Field: Ideal for stage and studio applications.
- 16-Bit Dimming: Smooth, high-precision fades on master dimmer and individual colors.
- Virtual Color Wheel: Preloaded with color-matched popular gel filters.
- On-Board & DMX Control: Adjust color, zoom, and dimming manually or remotely.
- Adjustable PWM: Prevents flickering in on-camera applications.
- RDM-Enabled: Remote Device Management for streamlined setup and control.
- Silent Operation: Perfect for noise-sensitive environments like studios and theaters.
***Now fitted with TrueCon Connectors***
Optical
- Light Source: 89 LEDs (18 red, 18 green, 16 blue, 16 amber, 21 lime) 3 W, (1.13 A), 3698 K, 50,000 hours life expectancy
- Color Temperature (range): 2800 to 6500 K
- CRI (3200 K): 90
- Beam Angle: 17° to 54°
- Field Angle: 30° to 85°
- Zoom Range: 17° to 85°
- Lumens (30°): 4,294
- Lumens (73°): 6,661
- Illuminance (30°): 1,980 lux @ 5 m
- Illuminance (85°): 433 lux @ 5 m
- Selectable PWM: 600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 25,000 Hz
Dynamic Effects
- Dimmer: Electronic
- Shutter/Strobe: Electronic
- Zoom: Motorized
- Strobe Rate: 0 to 27 Hz
- Standalone Color Mixing: Yes
- Color Temperature Presets: Yes
- Dim Modes: 4
- Built-in Automated Programs: Yes
Construction / Physical
- Dimensions: 17.80 x 12.59 x 10.82 in (452 x 320 x 275 mm)
- Weight: 19 lb (8.6kg)
- Exterior Color: Black
- Housing Material: Aluminum alloy, Aluminum die-cast
- Power Connection: Edison (Local) plug to TrueCon
- Power Input: TrueCon
- Power Output: TrueCon
- Data Connectors: 3- and 5-pin XLR
- Cable Length (power): 5 ft (1.5 m)
- Control Protocol: DMX, RDM
- DMX Channels: 1, 3, 5, 7, 11, 13, 14 or 17
- Modes/Personalities: 8 personalities (1, 3, 5, 7, 11, 13, 14, 17, HSV)
- Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
- Power Linking: 4 units @ 120 V; 8 units @ 208 V; 8 units @ 230 V
- Power and Current: 304 W, 2.576 A @ 120 V, 60 Hz
- Power and Current: 293 W, 1.490 A @ 208 V, 60 Hz
- Power and Current: 293 W, 1.358 A @ 230 V, 50 Hz
- CE, MET, FCC
- IP Rating: IP20, dry location
- Noise Level (Idle): 0.4 dB(A) @ 1 m
- Noise Level (Auto): 16.8 dB(A) @ 1 m
- Noise Level (On): 30.2 dB(A) @ 1 m
- Noise Level (Off): 11.6 dB(A) @ 1 m
- Noise Level (silent): 18.8 dB(A) @ 1 m
What's Included
- Ovation F-915FC
- TrueCon power cord
- Gel frame (7.5 in/191 mm accessories)
Optional Accessories
- Professional Clamps: CTC-50HC, CTC-50HCN
- 3-pin or 5-pin DMX Cables
- Color Blending Filters: DF60X1D, DF20D
- Ovation F 7.5” Barndoor V2
- Ovation 8" Pole Operated Yoke
