Code: BT2FW
Cloud BT-2FW: Professional Bluetooth wall plate for Cloud mixers/amps. Features easy Cat 5 connection, customizable naming, and secured pairing.Black finish
€369.00
In Stock
QtyAdd to Cart

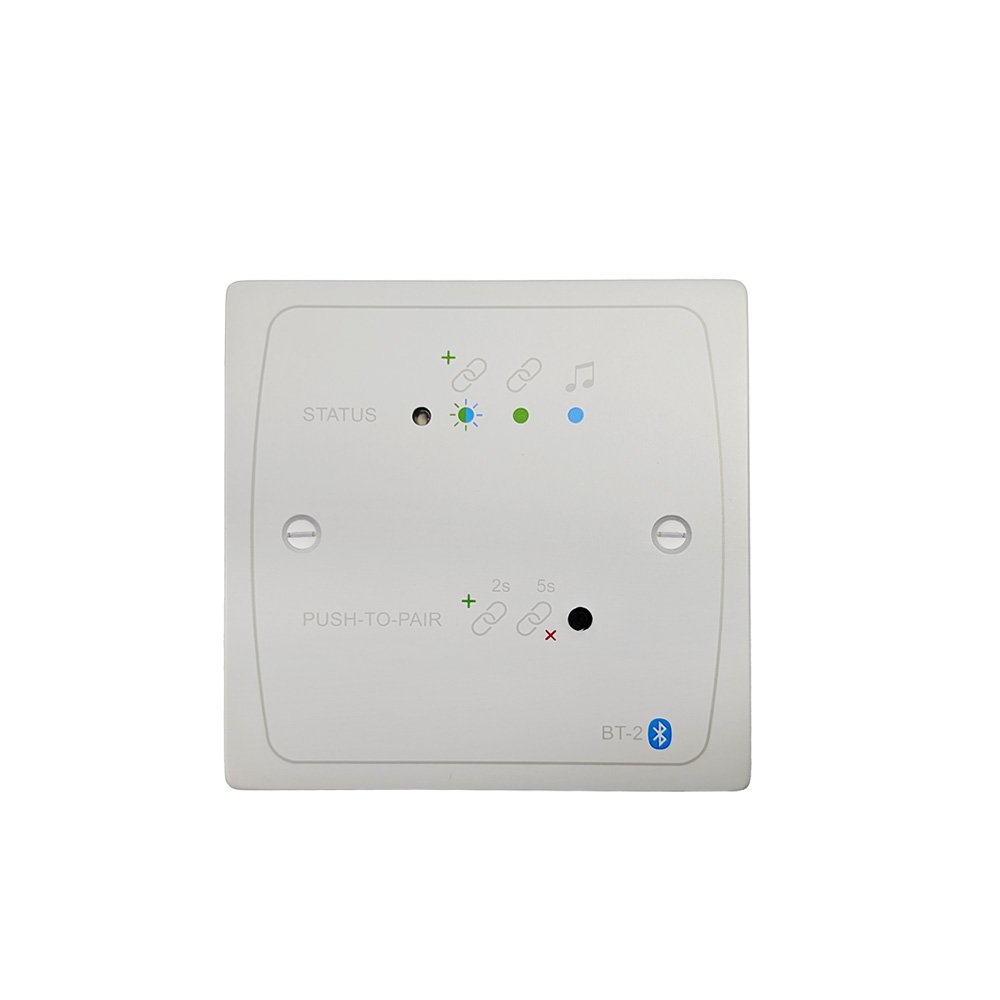

Cloud BT-2FW Bluetooth Remote Input Wall Plate – White
The Cloud BT-2FW is a professional, wall-mounting Bluetooth input module designed to provide seamless wireless audio integration for commercial and industrial spaces. When connected to a Cloud host unit via the dedicated RJ45 Facility Port, the BT-2FW allows staff or guests to stream high-quality audio directly from smartphones, tablets, and laptops into a specific zone.
Designed for simplicity and reliability, the BT-2FW utilizes a single screened Cat 5 cable to carry both DC power and balanced audio back to the main mixer or amplifier. This eliminates the need for local power supplies and ensures a hum-free, long-distance connection.
The Cloud BT-2FW is the ideal solution for gyms, classrooms, and hospitality venues that require a rugged, tamper-proof Bluetooth connection. By removing the need for complex cabling or external power at the wall plate, it provides a clean, professional install that is as easy to use as it is to set up.
Key Features
The BT-2FW is a mono-summed (L+R) module compatible with the following Cloud products fitted with an RJ45 Facility Port:
The Cloud BT-2FW is a professional, wall-mounting Bluetooth input module designed to provide seamless wireless audio integration for commercial and industrial spaces. When connected to a Cloud host unit via the dedicated RJ45 Facility Port, the BT-2FW allows staff or guests to stream high-quality audio directly from smartphones, tablets, and laptops into a specific zone.
Designed for simplicity and reliability, the BT-2FW utilizes a single screened Cat 5 cable to carry both DC power and balanced audio back to the main mixer or amplifier. This eliminates the need for local power supplies and ensures a hum-free, long-distance connection.
The Cloud BT-2FW is the ideal solution for gyms, classrooms, and hospitality venues that require a rugged, tamper-proof Bluetooth connection. By removing the need for complex cabling or external power at the wall plate, it provides a clean, professional install that is as easy to use as it is to set up.
Key Features
- Wireless Connectivity: Enables effortless Bluetooth streaming into any zone equipped with a Cloud Facility Port.

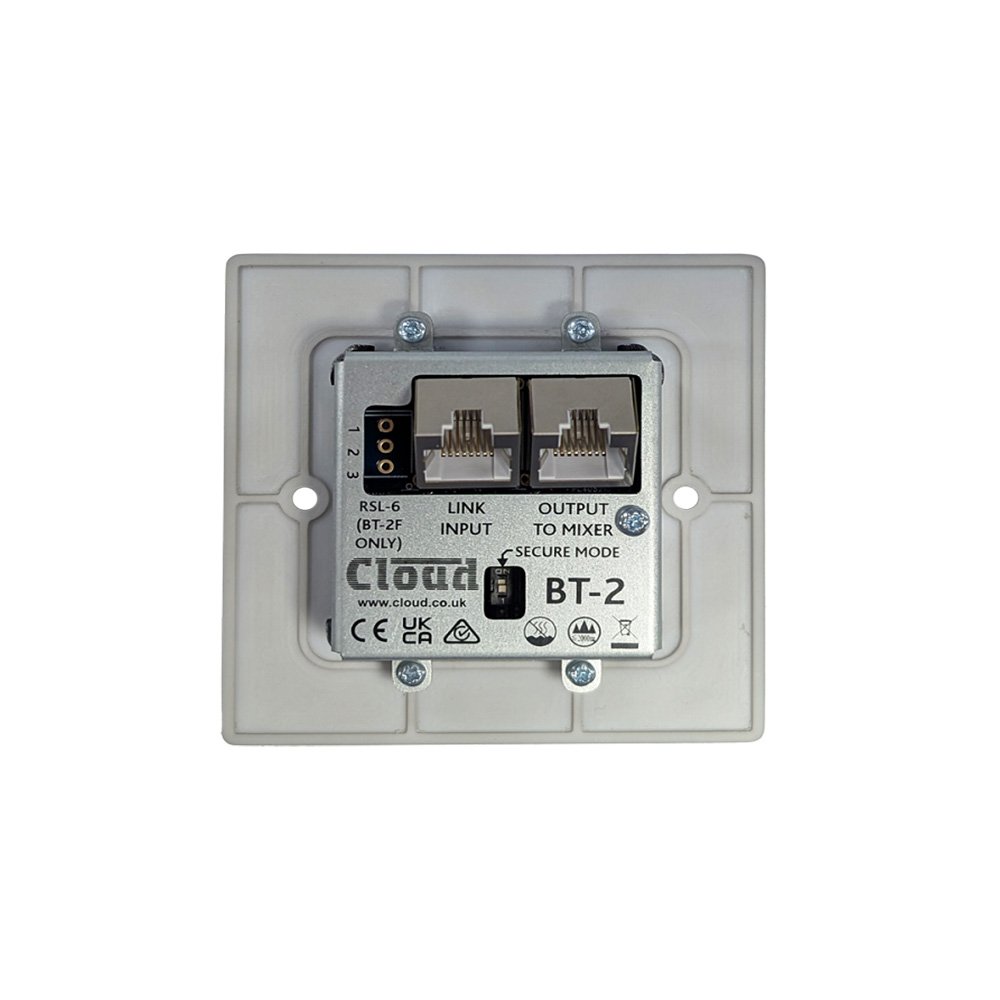

- Plug-and-Play Installation: Connects via a single screened Cat 5 cable (up to 100m) for balanced audio and power.
- Flexible Security Modes: Choose between a "Secured" single-button pairing mode or an "Unsecured" mode, configurable during installation to suit the venue's needs.

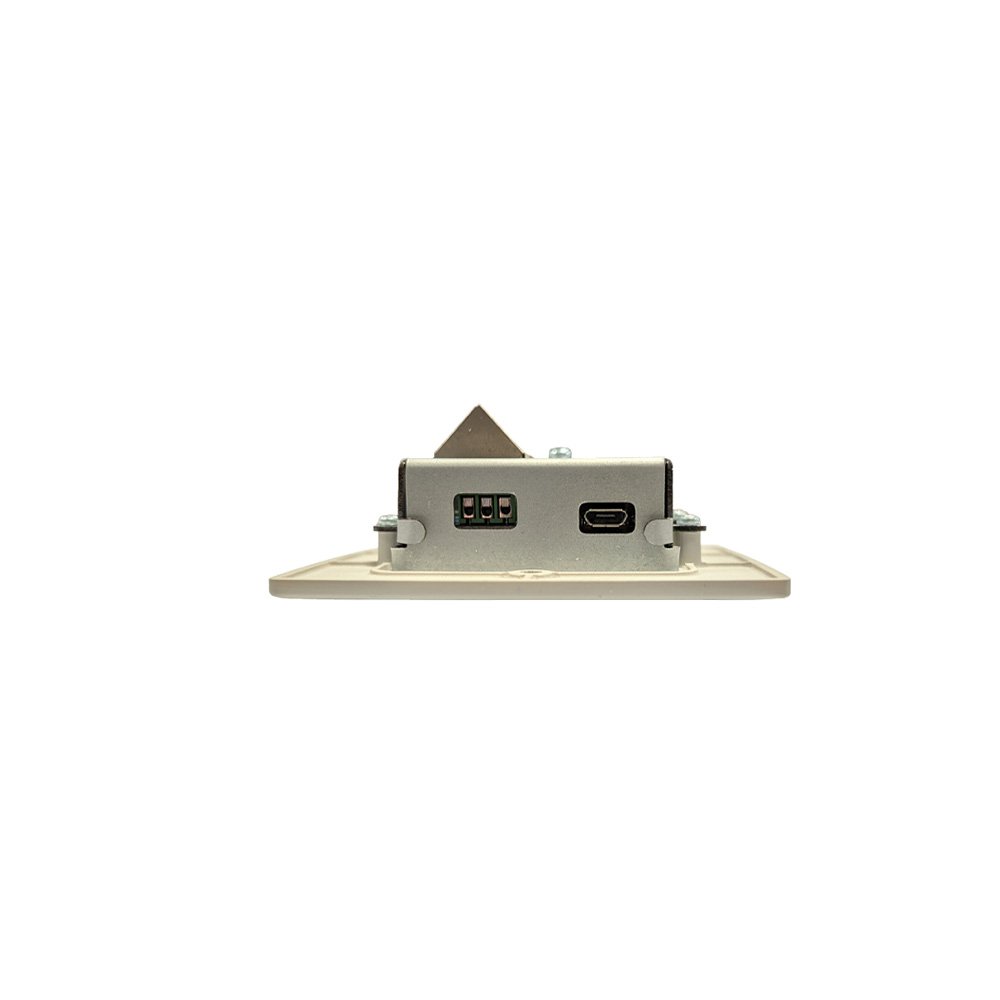

- Custom Branding: Features a Micro USB connection for easy custom naming of the Bluetooth ID (e.g., "Bar Bluetooth" or "Studio 1").
- Visual Feedback: A bi-color LED provides instant status updates on pairing progress and streaming activity.
- Daisy-Chain Capability: Can be easily integrated into a series with other Cloud remote modules (like the LM-2) or volume control plates (RSL-6/RL-1).
- Standard UK Fit: Designed to mount into a standard single-gang UK electrical back box (minimum 35mm depth).
The BT-2FW is a mono-summed (L+R) module compatible with the following Cloud products fitted with an RJ45 Facility Port:
- Zone Mixers: Z4MK4, Z8MK4
- Mixing Amplifiers: 46-120MK2, 46-240, 46-80, 46-80T
- Mini Amplifiers: MA40 Series (F, T, E), MA80 Series (FT, E)
- Power Amplifiers: MPA120MK2, MPA240MK2
- Zone Amplifiers: 24-120, 24-240
