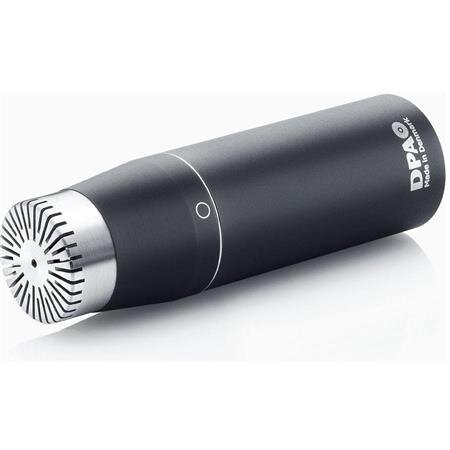

The DPA 4006C Omni Microphone is compact recording microphone and part of the Reference Standard Series. The 4006C is great as a stereo pair and delivers transparent and authentic recordings everytime.
The 4006C from DPA can be mounted, hung or concealed to suite your recording environment, such as theatres, opera and concert halls or places of worship. The 4006C can also be used for vocals, film, studio rooms and on-location. The 4006C is great for close miking of instruments such as double bass, trumpet and piano. The 4006C is truly dynamic.
| Max. SPL, peak before clipping | 140 dB | Matching tolerance | ± 0,5 dB |
|---|---|---|---|
| Output voltage, RMS | > 4 V | Power supply (for full specifications) | 48 V Phantom power (± 4 V) |
| Sensitivity, nominal ±2 dB at 1 kHz | 40 mV/Pa; -28 dB re. 1 V/Pa | Frequency range, ± 2 dB | 20 Hz to 20 kHz |
| Catridge type | Pre-polarized condenser | Phase deviation for kit | < 5° |
| Equivalent noise level, ITU-R BS.468-4 | Typ. 27 dB (max. 29 dB) | Relative humidity (RH) | Up to 90% |
| Capsule diameter | 16 mm (0.63 in) | Common mode rejection ratio (CMRR) | > 50 dB |
| Output balance principle | Impedance balancing with Active Drive | Cable drive capability | 100 m (328 ft) |
| Minimum load impedance | 2 kohm | Weight | 63 g (2.2 oz) |
| Total harmonic distortion (THD) | < 1 % up to 134 dB SPL peak | S/N ratio (A-weighted), re. 1 kHz at 1 Pa (94 dB SPL) | Typ. 79 dB(A) |
| Equivalent noise level, A-weighted | Typ. 15 dB(A) re. 20 µPa (max. 17 dB(A)) | Principle of operation | Pressure |
| Polarity | +V at Pin 2 for positive sound pressure | Temperature Range | -40 °C to 45 °C (14 °F to 113 °F) |
| Current Consumption | 2.8 mA | Diameter | 16 to 19 mm (0.63 to 0.75 in) |
| Connector | XLR-3M. Pin 1: shield, Pin 2: signal + phase, Pin: - phase | Length | 64 mm (2.5 in) |
| Frequency Range | 10 Hz to 20 kHz | Output Impedance | < 200 ohm |
| Dynamic Range | Typ. 119 dB | Color | Matte black |
