Code: DPA4060-OP-C-B90
Capture clear sound with the DPA 4060 CORE+ mic. An omnidirectional lavalier with CORE+ processing, designed for high-quality audio.
€482.00
Low Stock
QtyAdd to Cart

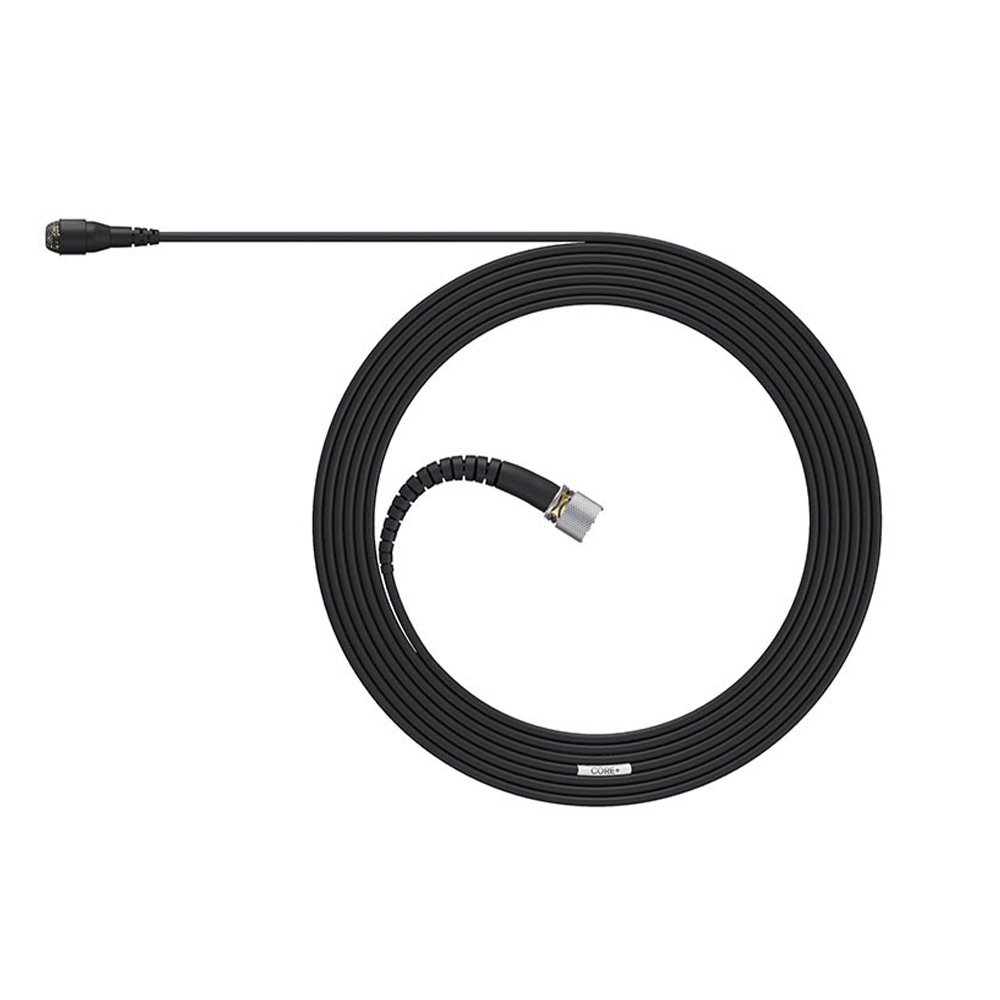

DPA 4060 CORE+ Omnidirectional Condenser Clip-on Mic, Normal SPL 134dB, Black, MicroLock
Discover the microphone that set the standard for miniature audio capture with the DPA 4060 CORE+ Omnidirectional Condenser Clip-on Mic. Originally developed from technology used in hearing aids and measurement mics, this lavalier delivers an exceptionally accurate and consistent sound, making it a favourite in television, film, and theatre.
The 4060 CORE+ features DPA's innovative CORE+ distortion-free processing, which provides a wide dynamic range and neutralizes distortion across all volumes. With a Normal SPL handling of 134dB, this microphone is ideally suited for applications where the sound source is more remote or damped, ensuring an excellent balance of signal to noise.
Designed to withstand the toughest conditions, the microphone boasts a unique Double Vent Protection System for superior resistance to humidity and sweat. The Kevlar-reinforced cable relief is built to endure constant twists and bends, making it incredibly rugged and reliable for everyday use. Its diminutive size allows for easy and flexible concealment without compromising on audio quality.
Thanks to its true omnidirectional pickup pattern, the 4060 CORE+ is less sensitive to handling, pop, and wind noise. You don't need to aim it directly at the sound source to achieve a quality pickup. The MicroLock connector provides a secure, flexible, and dependable connection to a wide range of wireless systems via DPA's modular adapter system.
Key Features:
- CORE+ Processing: Neutralizes distortion for a wide and clear dynamic range.
- Omnidirectional Pattern: Less sensitive to handling and wind noise; no direct aiming required.
- Normal SPL Handling (134dB): Ideal for remote or damped sound sources.
- Extremely Rugged: Double Vent Protection and Kevlar-reinforced cable for durability.
- MicroLock Connector: Secure, reliable connection to most wireless systems.
- Diminutive Size: Allows for flexible and easy concealment.
- Directional pattern: Omnidirectional
- Principle of operation: Pressure
- Cartridge type: Pre-polarized condenser
- Frequency response: 20 Hz - 20 kHz
- Effective frequency range ±2 dB: Soft boost grid: 20 Hz - 20 kHz, 3 dB soft boost at 8 - 20 kHz. High boost grid: 20 Hz - 20 kHz, 10 dB boost at 12 kHz
- Sensitivity, nominal, ±3 dB at 1 kHz: 20 mV/Pa; -34 dB re. 1 V/Pa
- Equivalent noise level, A-weighted: Typ. 23 dB(A) re. 20 µPa (max. 26 dB(A))
- Equivalent noise level, ITU-R BS.468-4: Typ. 35 dB (max. 38 dB)
- Distortion, THD < 0.5%: 128 dB SPL RMS, 131 dB SPL peak
- Distortion, THD < 1%: 129 dB SPL RMS, 132 dB SPL peak
- Dynamic range: Typ. 106 dB
- Max. SPL, THD 10%: 134 dB SPL peak
- Rated output impedance: 30 - 40 Ω
- Cable drive capability: Up to 300 m (984 ft) with DAD6001-BC XLR Adapter
- Power supply (for full performance): For wireless systems Min. 5 V - max. 10 V through DPA adapter, With DAD6001-BC: P48 (Phantom Power). Will work from 12 V
- Current consumption: Typ. 1.5 mA (microphone). 3.5 mA with DAD6001-BC XLR Adapter
- Connector: MicroLock, MicroDot, TA4F Mini-XLR, 3-pin LEMO, Mini-Jack
- Weight: 7.5 g (0.26 oz) incl. Cable and MicroLock connector
- Microphone diameter: 5.4 mm (0.21 in)
- Microphone length: 12.7 mm (0.5 in)
- Cable length: 1.8 m (5.9 ft)
- Polarity: Positively increasing sound pressure produces positive going voltage on MicroLock pin
- Temperature range: -40°C to 45°C (-40°F to 113°F)
- Relative humidity (RH): Up to 90%
- Sensitivity selection tolerance (at 1 kHz): ±1.5 dB
