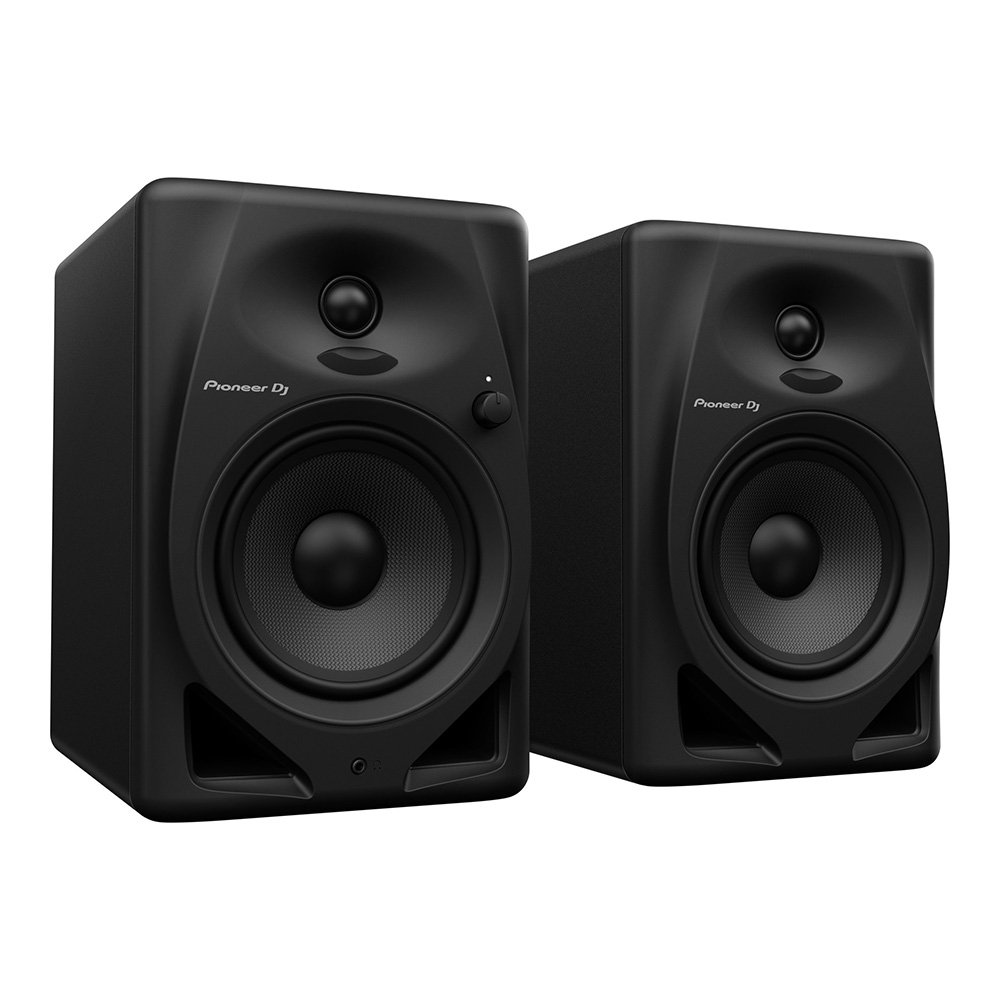

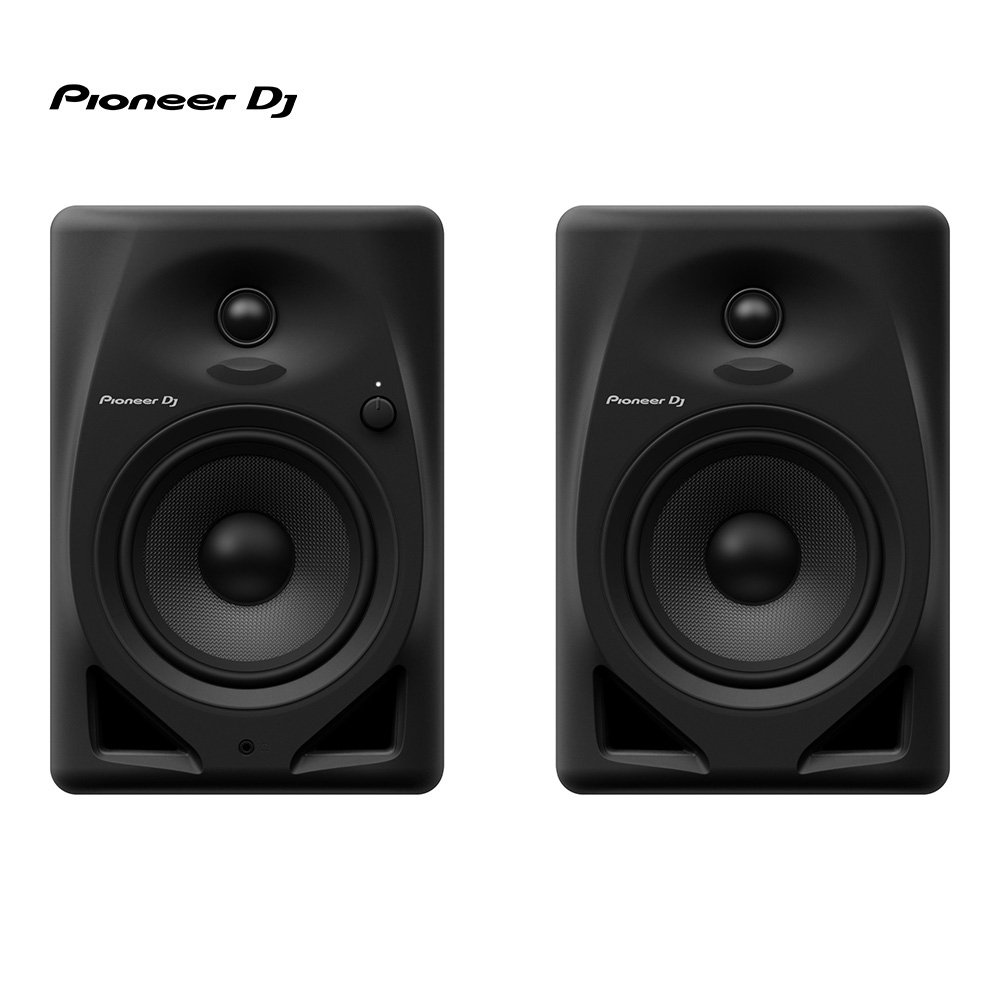

The 5-inch Pioneer DJ DM-50D. The new speaker design combines key elements from the popular DM-40 unit with brand-new components and features to create a more powerful and higher quality sound.
The DM-50D speakers deliver a balanced, punchy bass sound and they can pump out extra power when you need it as they’re loaded with a new Class D amplifier and a 5-inch woofer in each unit. High frequencies are clearer too, thanks to the advanced new design of the DECO convex diffusers.
Want to make some tracks to drop into your next DJ set? Simply flick the switch on the speaker to change from DJ mode to Production mode and the DSP settings will automatically adjust to create the best sound for each application.You can connect your DJ setup or home studio to the RCA, mini jack, and newly added TRS input terminals on the DM-50D speakers. Even better, the volume knob and headphones socket are on the front panel for quick connection and level control. And, with the choice of black or white models, you can pick the color that best suits the setting in your home.
2-way bass reflex, active monitor speakers
Class D with DSP
Rch: 25 W / 4 Ω
Input terminals (balanced input)
1/4” TRS jack x 1
Input terminals (unbalanced input)
RCA pin jack x 1, 3.5-mm stereo mini jack x 1
3.5-mm stereo mini jack x 1
MDF vinyl laminate
Woofer (LF driver)
5" (127 mm) fiberglass cones
Tweeter (HF driver)
3/4” (19 mm) soft dome
AC 110 V — 240 V, 50 Hz / 60 Hz
Power consumption during standby mode
0.3 W or less
Max dimensions (W ｘ D ｘ H)
Lch: 175 x 262 x 257 mm / 6.89” x 10.32” x 10.12”
Rch: 175 x 262 x 247 mm / 6.89” x 10.32” x 9.72”
Lch: 3.9 kg / 8.6 lbs.
Rch: 3.5 kg / 7.7 lbs.
- Power cord
- Audio converter cable (3.5 mm stereo mini plug to RCA)
- Speaker cord
- Bottom cushion
- Quick Start Guide
- Precautions for Use
